Superior Solar Street Light 50W-140W 12.8V-25.6V Z series ,Integrated All in one (AIO) design.
A smart wireless Zigbee control scheme is now available, which uses the European standard ZHAGA connector.
MPPT solar controller efficiency 97%

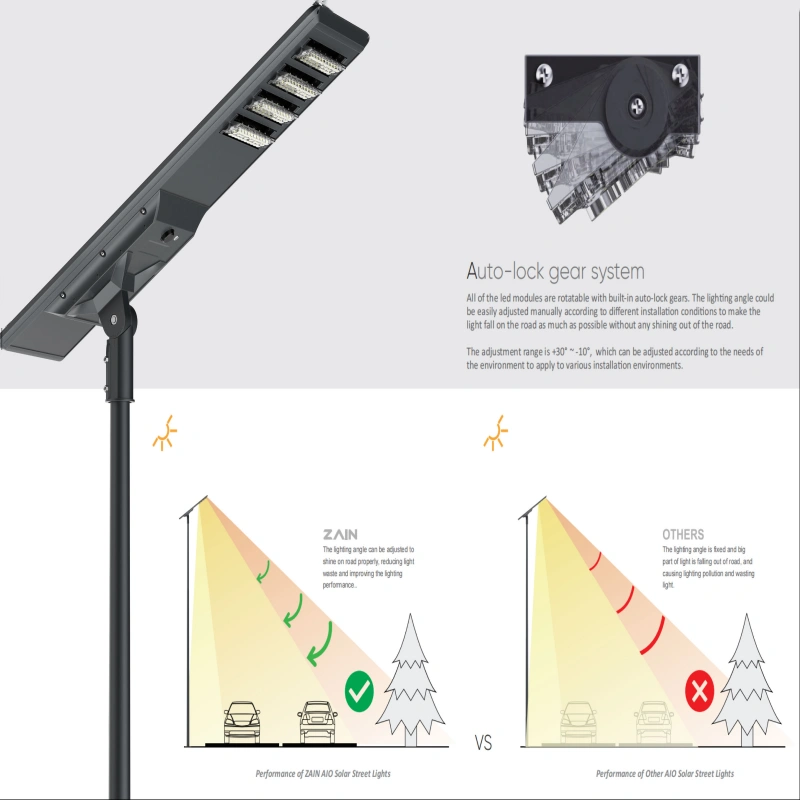

The LED module is adjustable, allowing for a customizable lighting angle that can focus more light on the road while minimizing waste.
Specification:
|
Picture |
 |
|
 |
 |
|
|
|
Model |
AIO-Y50W | AIO-Y60W | AIO-Y80W | AIO-Y100W | AIO-Y120W | AIO-Y140W |
| LED power | 50W | 60W | 80W | 100W | 120W |
140W |
|
Luminous Flux |
18500lm | 10200lm | 13600lm | 17000lm | 20400lm |
23800Im |
|
CCT range |
2200K~6500K |
|||||
|
SMD5050 LED |
32pcs | 32pcs | 48pcs | 64pcs | 64pcs |
80pcs |
|
LiFePO4 battery |
12.8V 384WH | 12.8V 460WH | 12.8V 614WH | 12.8V768WH | 25.6V 921WH |
25.6V 1075W (1536WH Max) |
|
Solar panel |
18V 64W | 18V 82W | 18V103W | 18V 125W | 36V 135W |
36V 158W |
|
Product size mm |
910*420*350 | 1100*420*350 | 1300*420*350 | 1590*420*350 | 1360*530*380 |
1480*530*380 |
|
Controller |
99% MPPT |
|||||
|
Top Pole size |
76mm |
|||||
|
Pole height |
4~8m | 5~8m | 6~10m | 6~12m | 8~12m |
8~14m |
|
Certificates |
EMC,LVD,ROHS,CE |
|||||
|
Warranty |
5 years |
|||||
Easy Installation: All in one connect, directly installation on the top of light pole diameter 60 to 80mm range.
Application :residential streets ,large-scale commercial areas.
