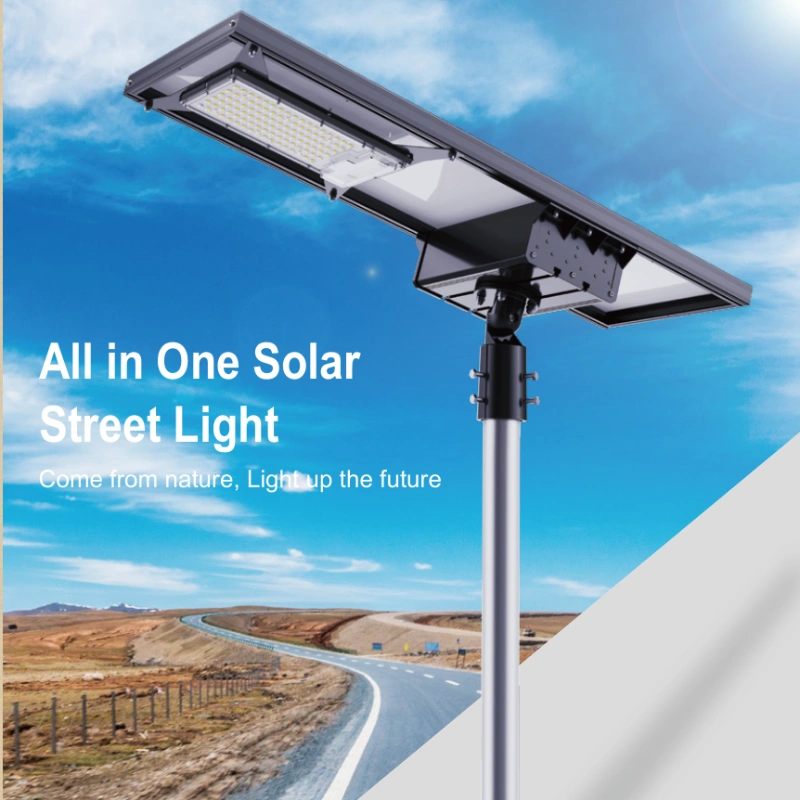

All in one Solar Street Light 30W-160W ST series

Find out why the All in One Solar Street Light 30W-160W is the best choice for your lighting needs. Benefit from energy efficiency, easy installation, and durable performance in all weather conditions.

  • Power:30W 40W 60W 80W 100W 160W high-tech lighting solution;
  • lumen:5000lm 6000lm 10000lm 13000lm 15000lm 20000lm;
  • LifePO4 Battery :45AH 75AH 120AH 160AH 200AH 280AH;
  • reduced energy bills and superior, reliable lighting for your streets, parking lots, or pathways;
  • Durable, cost-effective, and eco-friendly lighting solutions for your community;

Free LOGO Print& OEM customization

  • Quality assurance Fast delivery!
  • Lifetime free maintenance
  • 3-10years warranty
Share On:
Available Downloads:

All in one Solar Street Light 30W-160W ST series Specification:


All in one Solar Street Light 30W-160W S series ec2-30 All in one Solar Street Light 30W-160W S series ec2-40 All in one Solar Street Light 30W-160W S series ec2-60
Model ST2-30W ST2-40W

ST2-60W

LED chip

140pcs
Luminous flux 5000lm 6000lm

10000lm

Beam angle

160°*60°

Lifespan

50000hrs

IP Rating

IP65

Working temperature

-20℃~60℃(Charge above 0℃)
Color temperature

3000-7500K

CRI

Ra≥70
Mono Solar Panel 60W/5V 60W/5V

80W/18V

Solar cell efficiency

19%-22%
LifePO4 Capacity 144WH/45AH 240WH/75AH

384WH/120AH

Lighting time

5-7 rainy days(full charged)
Top diameter of pole 58 mm 58 mm

58 mm

Mounting height

5-6M 6-7M 6-8M
Installation spacing

20-40M

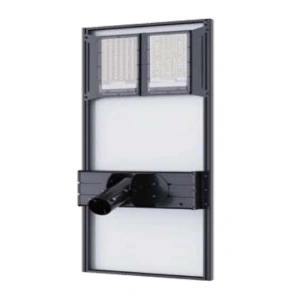

All in one Solar Street Light 30W-160W S series ec2-80 All in one Solar Street Light 30W-160W S series ec2-160 All in one Solar Street Light 30W-160W S series ec2-160
Model ST2-80W ST2-100/120W

ST2-160W

LED chip

280pcs
Luminous flux 13000lm 15000lm

20000lm

Beam angle

160°*60°
Lifespan

50000hrs

IP Rating

IP65
Working temperature

-20℃~60℃(Charge above 0℃)

Color temperature

3000-7500K
CRI

Ra≥70

Mono Solar Panel

110W/18V 110W/18V 160W/18V
Solar cell efficiency

19%-22%

LifePO4 Capacity

512WH/160AH 640WH/200AH 896WH/280AH
Lighting time

5-7 rainy days(full charged)

Top diameter of pole

76 mm 76 mm 76 mm
Mounting height 8-10M 8-10M

10-12M

Installation spacing

20-40M

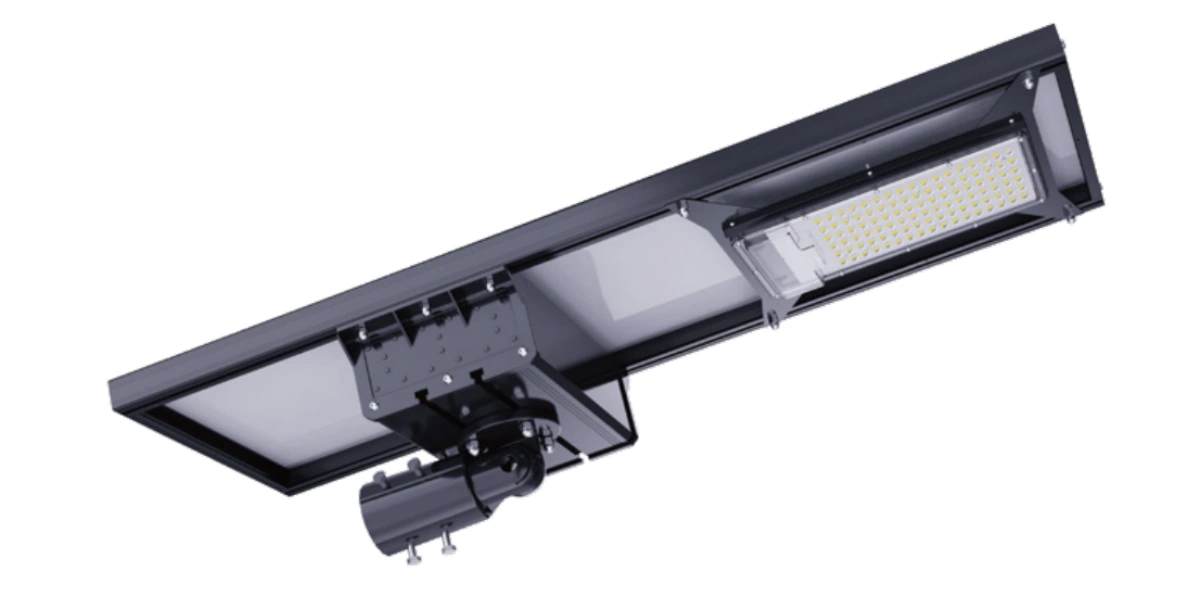

All in one Solar Street Light 30W 160W S series 3 ECOOL POWER All in one Solar Street Light 30W 160W S series 4 ECOOL POWER All in one Solar Street Light 30W 160W S series ECOOL POWER

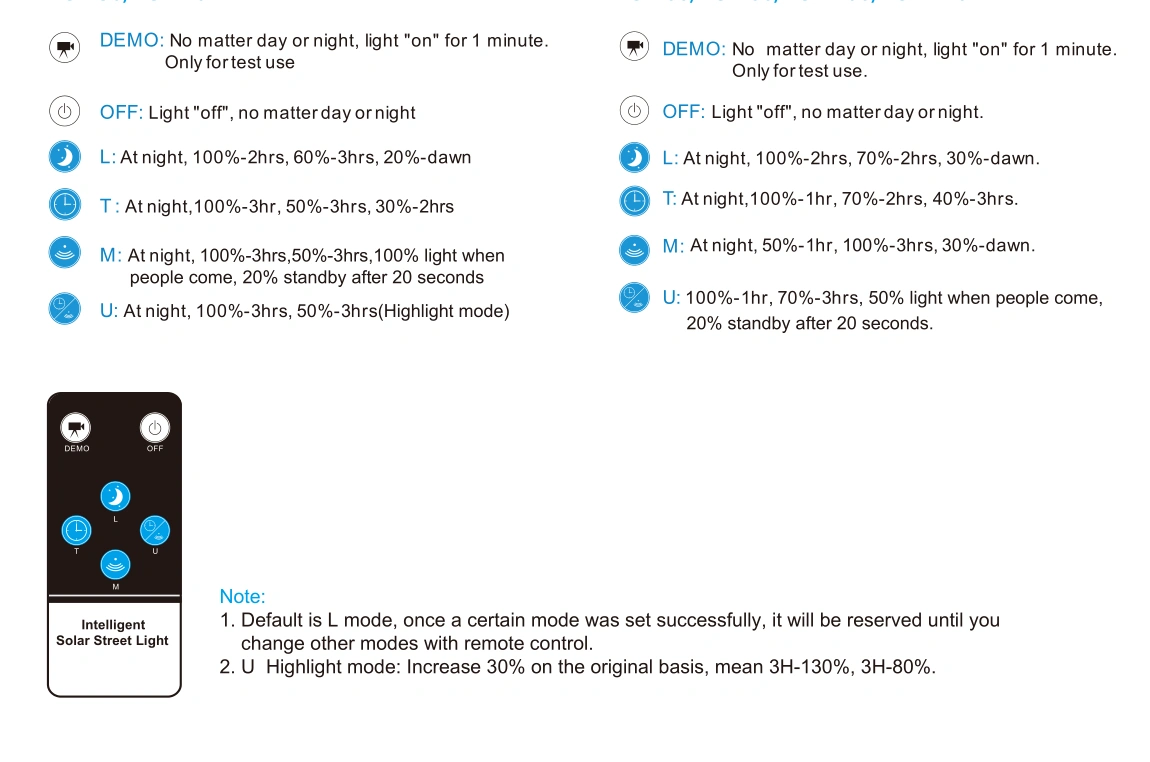

All in one Solar Street Light 30W-160W S series remote controller
All in one Solar Street Light 30W-160W S series remote controller

Features

Integrated solar streetlights harness solar energy as their primary power source, offering independence from city power constraints. Their cable-free design eliminates the complexities associated with traditional streetlights, reducing construction costs and environmental impact for a more sustainable and cost-effective lighting solution.

Our All-in-one solar power street lights feature a modular design, streamlining maintenance and component replacement, including the battery and controller. This achievement significantly enhances maintenance efficiency, preventing operational mishaps and saving costs on maintenance and transportation. Additionally, as pioneers in the solar street light industry, we prioritize strength safety analysis, underscoring our commitment to ensuring the safety and reliability of each solar street light.

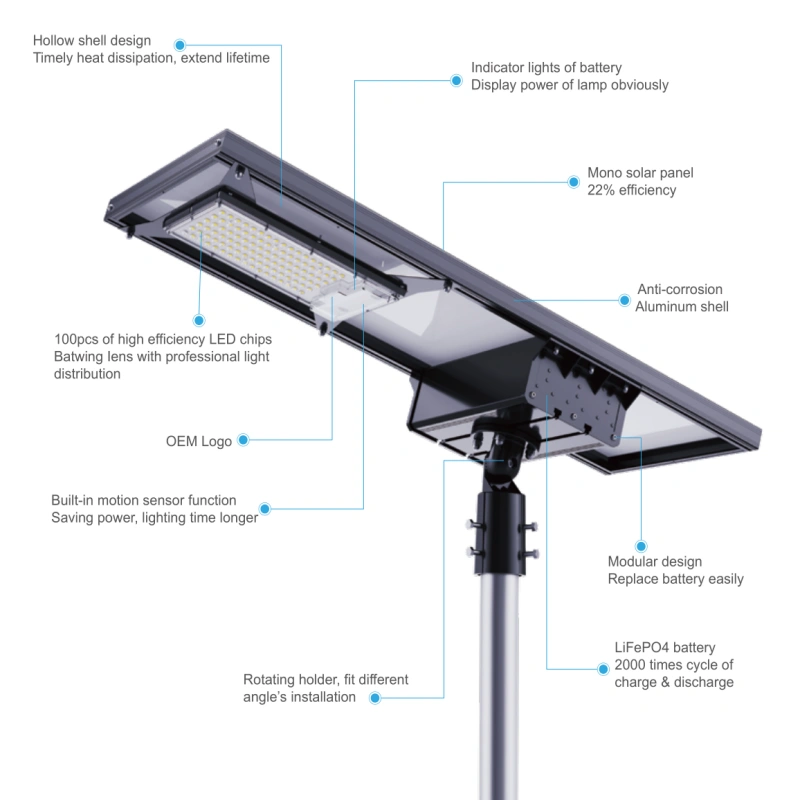

Characteristics

Patented appearance

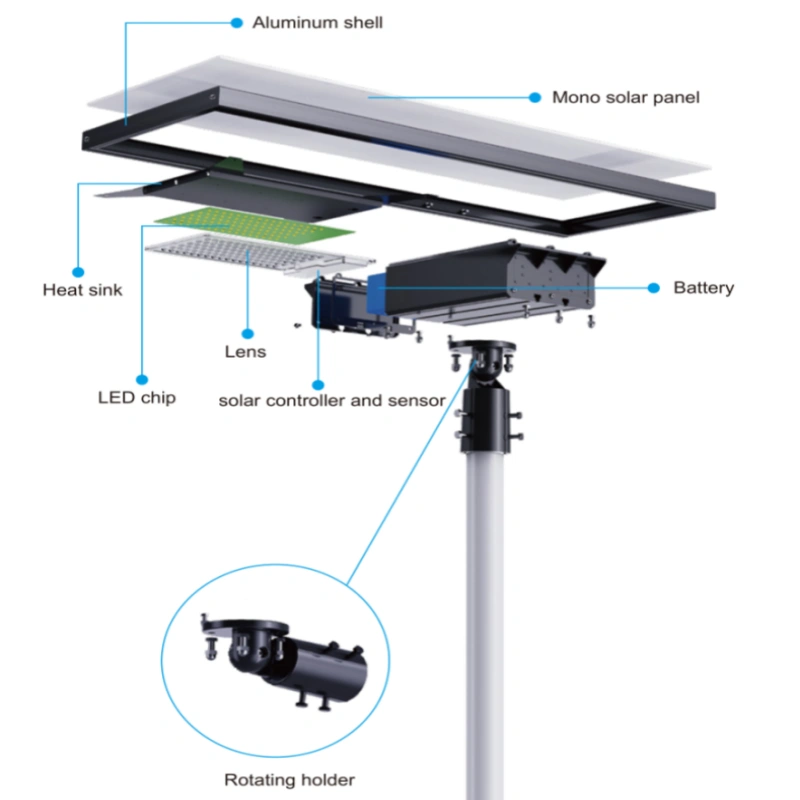

The design integrates a solar panel, microcomputer controller, lithium battery, and high-efficiency LED light source

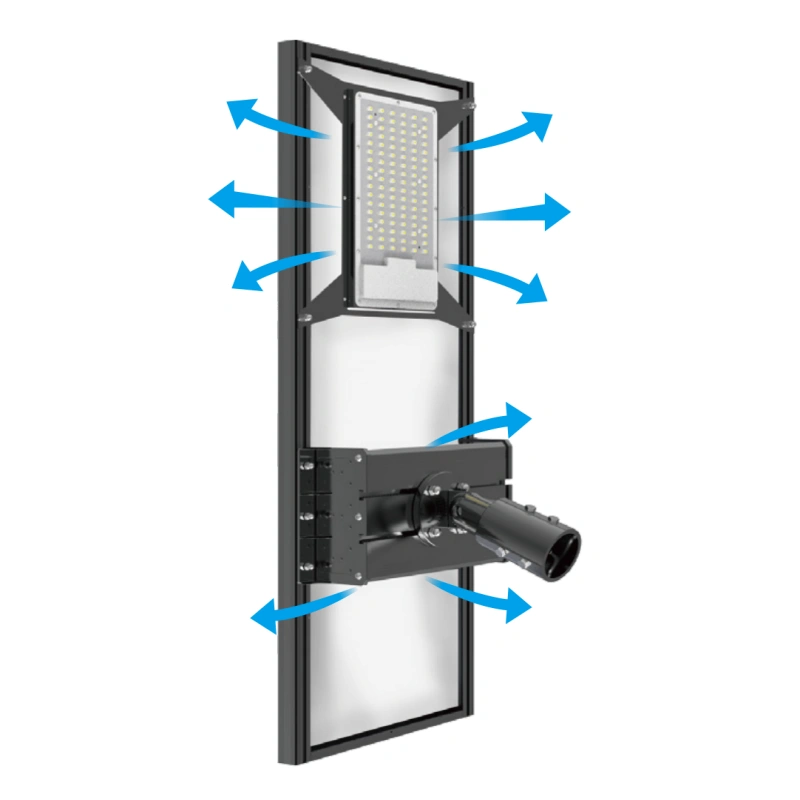

Modular design

Transportation, installation, and maintenance are more economical and simple due to the modular design of the battery and LED chip.

Proprietary control system

Our solar controller offers adjustable working modes, a unique control system, and a microwave induction function to save power and extend lighting time.

Intelligent power control system 4.0

Improved power control function regulates discharge power based on recent weather conditions, allowing for longer lighting and more rainy days.

High efficiency LED Chips

With 280 pieces of 3030 lamp chips, the lighting efficiency for the whole system is greater than 160lm/w, with optimized brightness.

Intelligent charge and discharge management

Protected by software and hardware, with intelligent equalization technology, it can cycle charge and discharge over 2000 times.

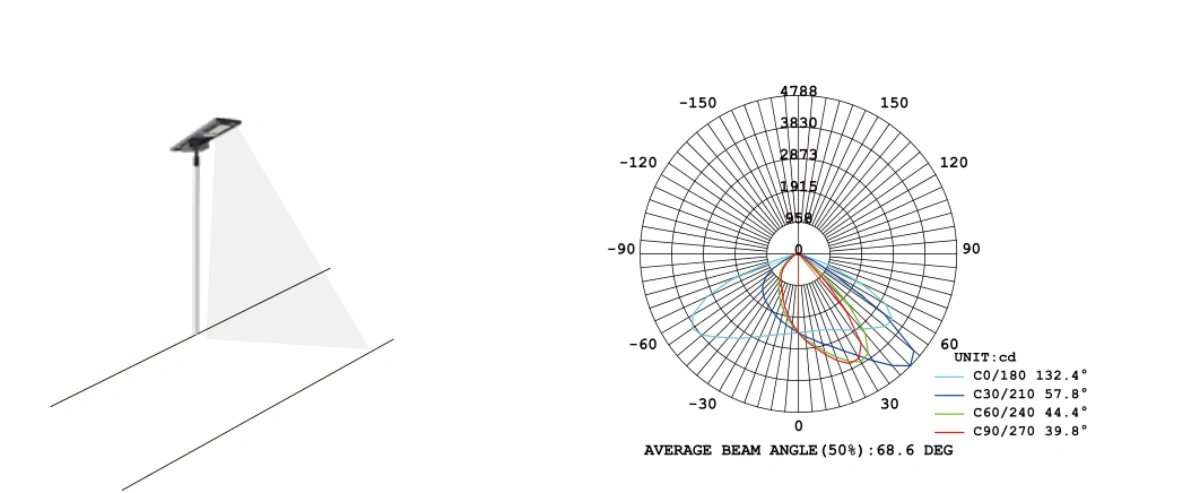

Professional light distribution design

This product is equipped with a patented lens that helps to make the area of irradiation more uniform.

Indicator lights of battery capacity

Indicator lights display battery capacity, making it easy to see the lamp’s charge and discharge status.

Rotating angle design

The angle and area of illumination can be adjusted based on street .

All in one Solar Street Light 30W-160W S series remote controller
All in one Solar Street Light 30W-160W S series remote controller

All in one Solar Street Light 30W 160W S series L ECOOL POWER

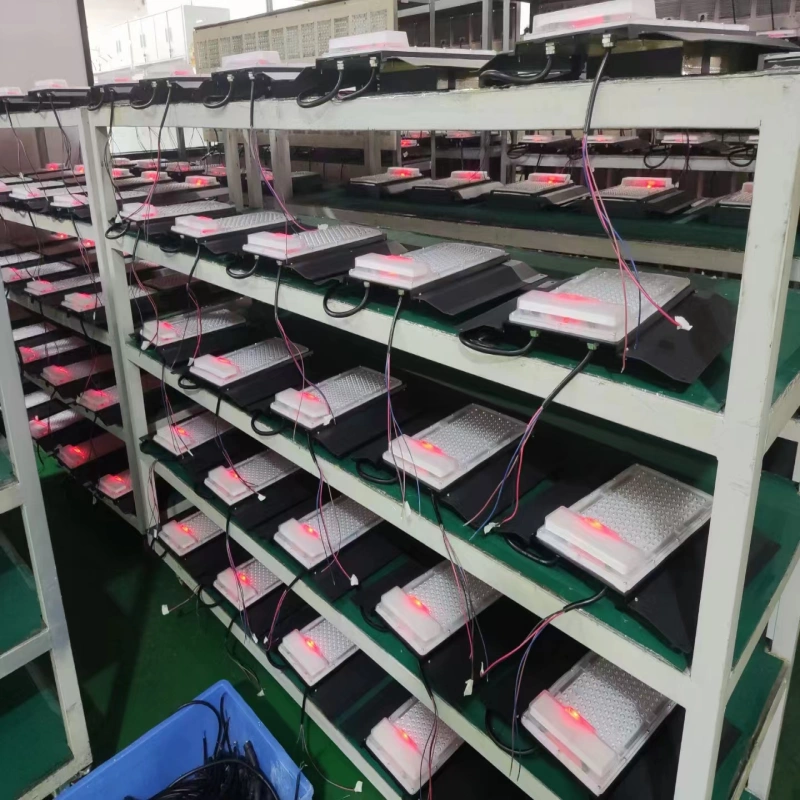

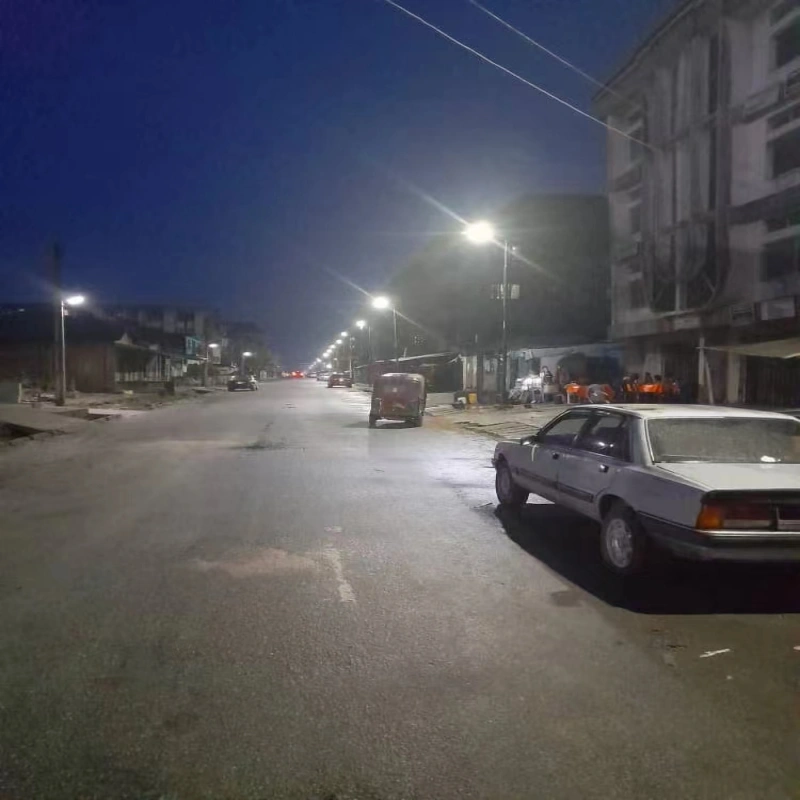

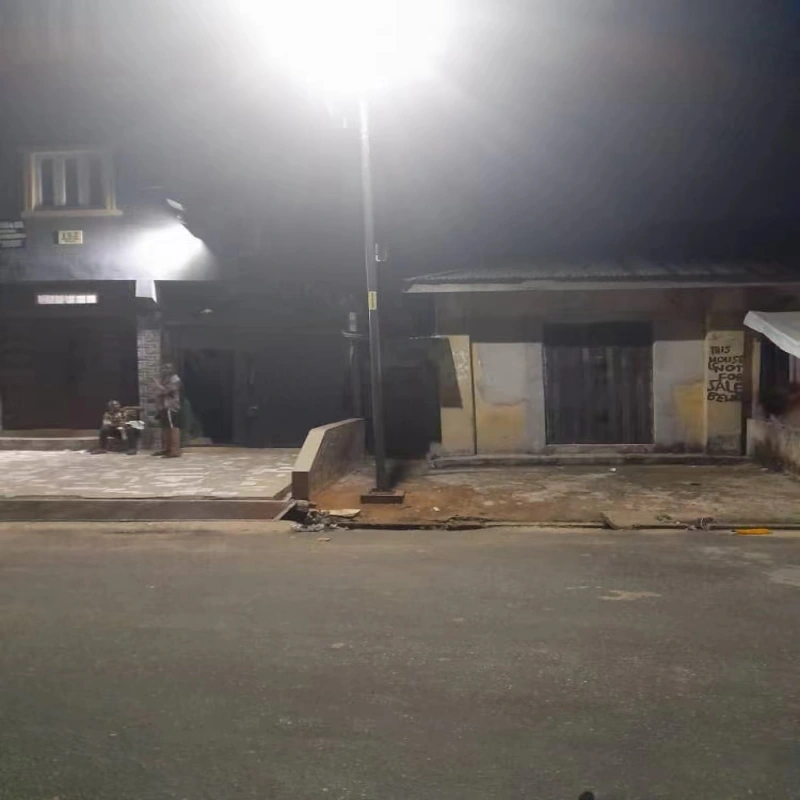

Project Show

All in one Solar Street Light 30W 160W S series 10 ECOOL POWER All in one Solar Street Light 30W 160W S series 9 ECOOL POWER All in one Solar Street Light 30W 160W S series 7 ECOOL POWER

All in one Solar Street Light 30W-160W S series (5)
All in one Solar Street Light 30W-160W S series (5)

All in one Solar Street Light 30W 160W S series 6 ECOOL POWER
