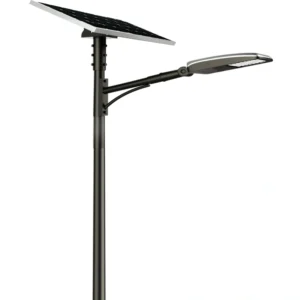

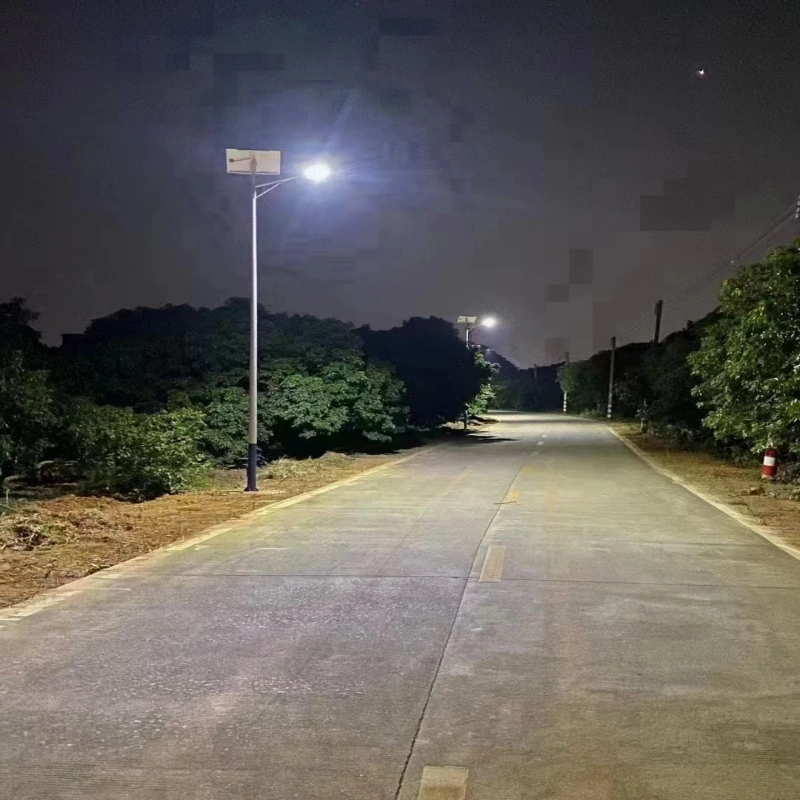

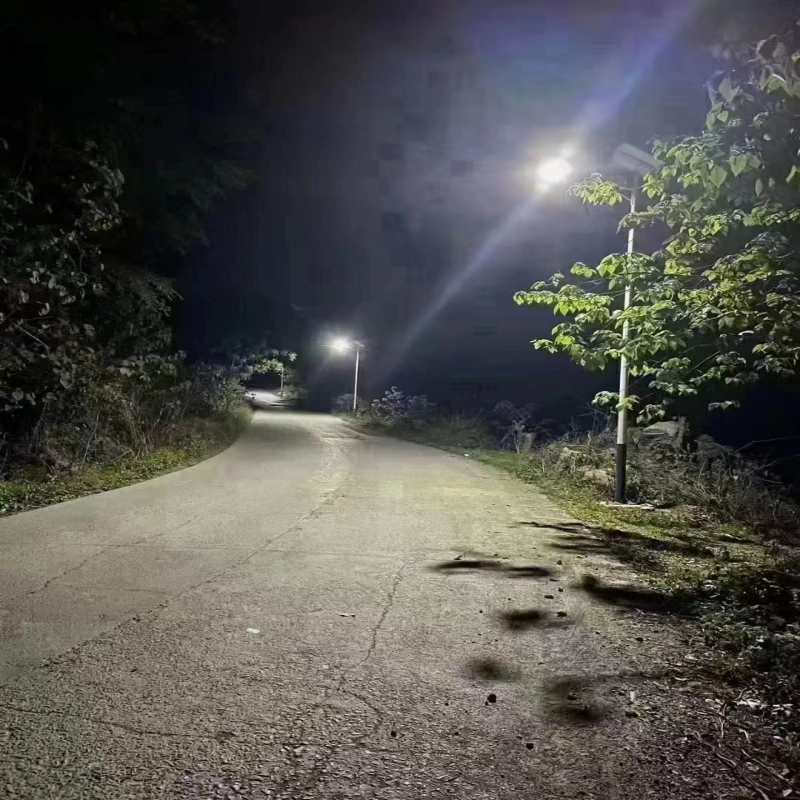

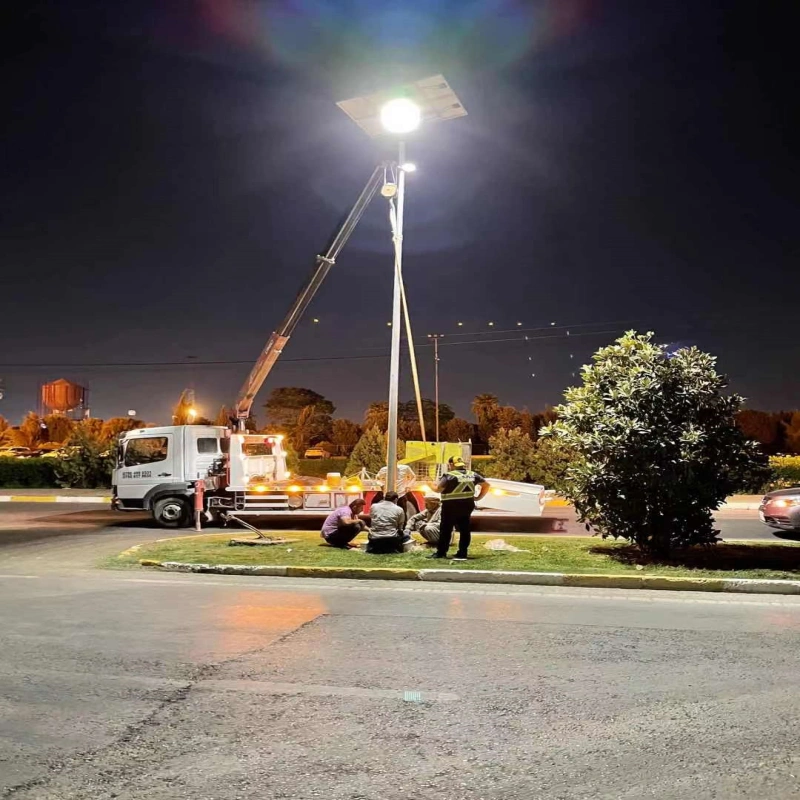

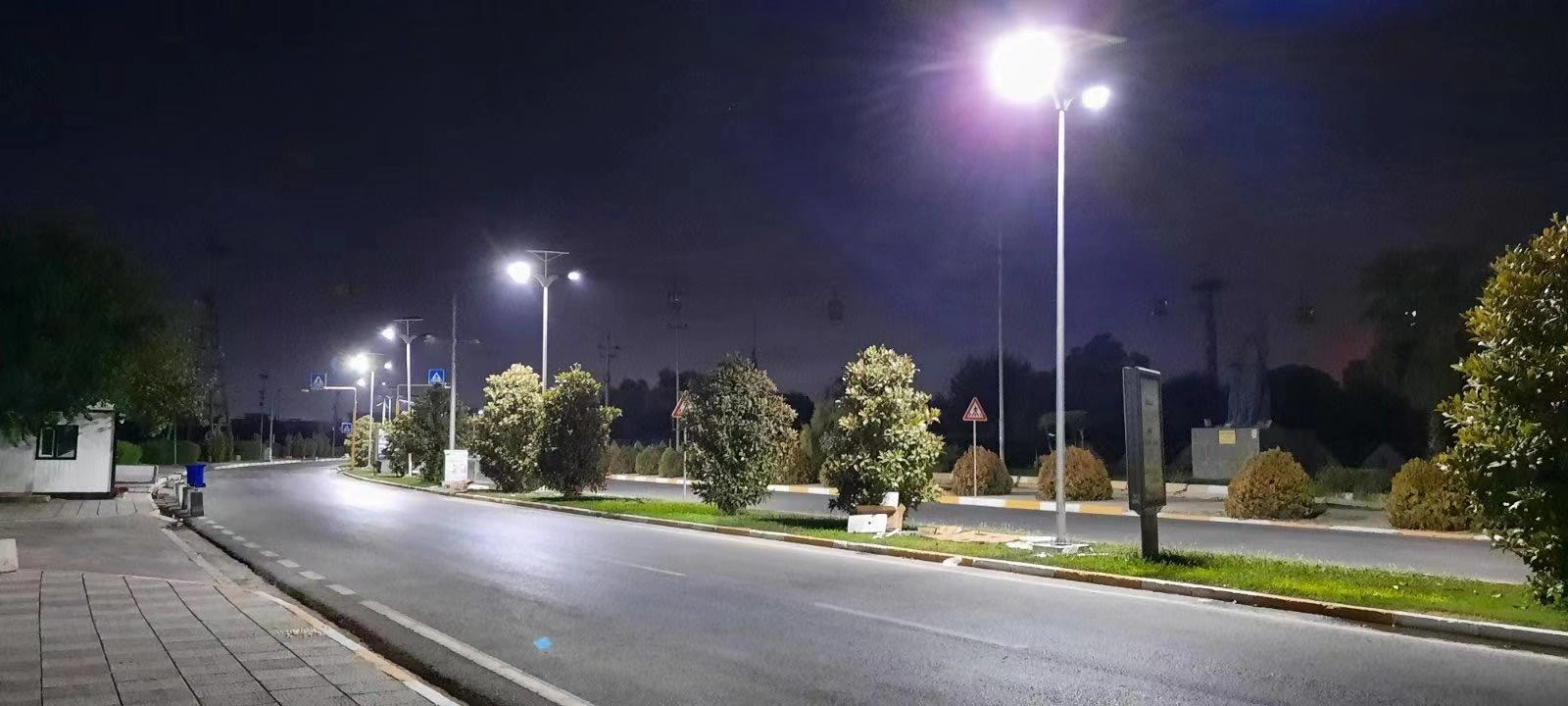

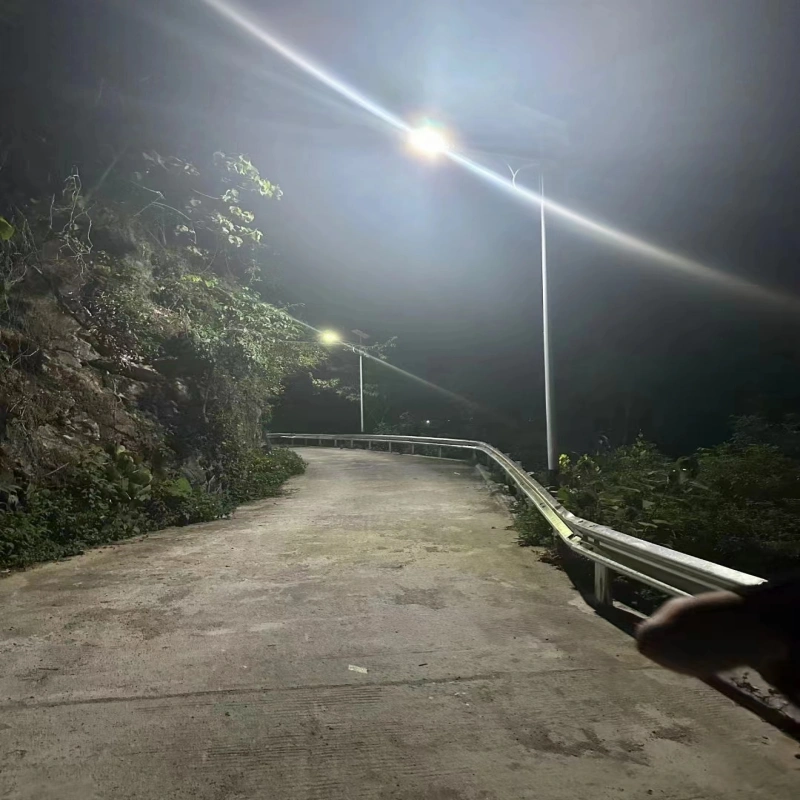

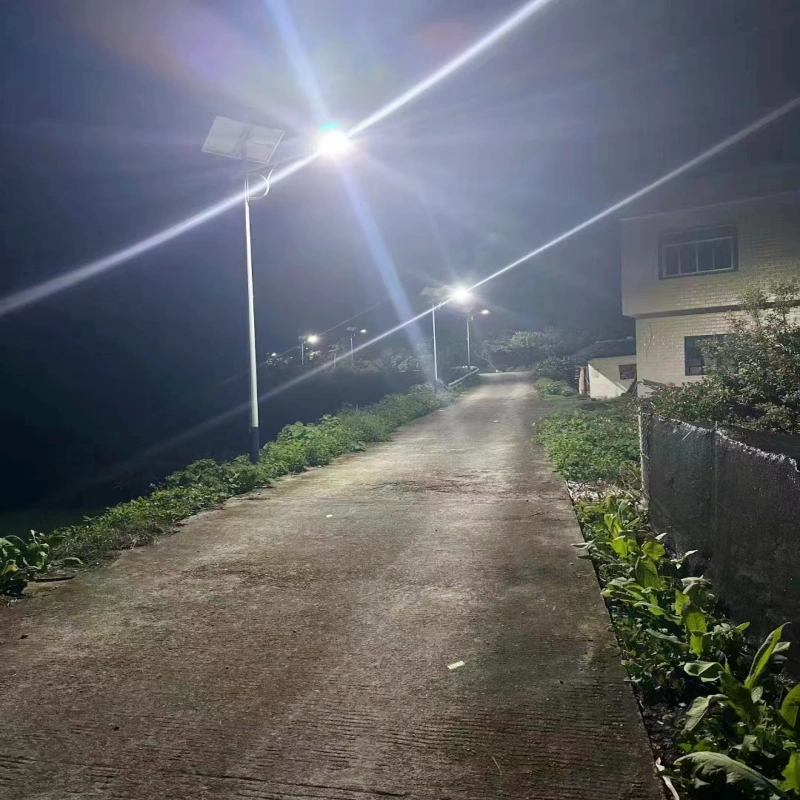

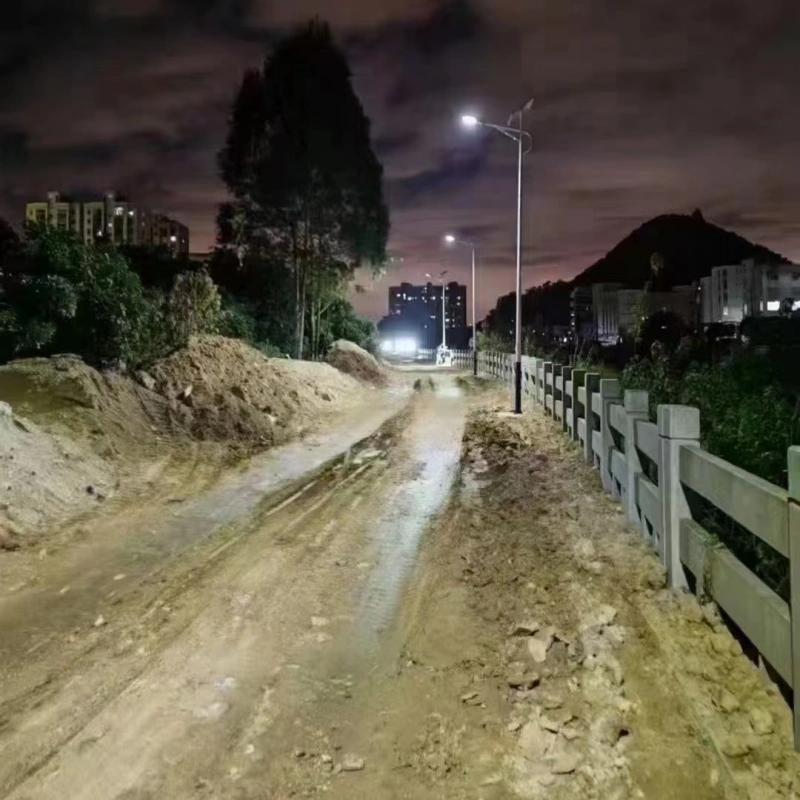

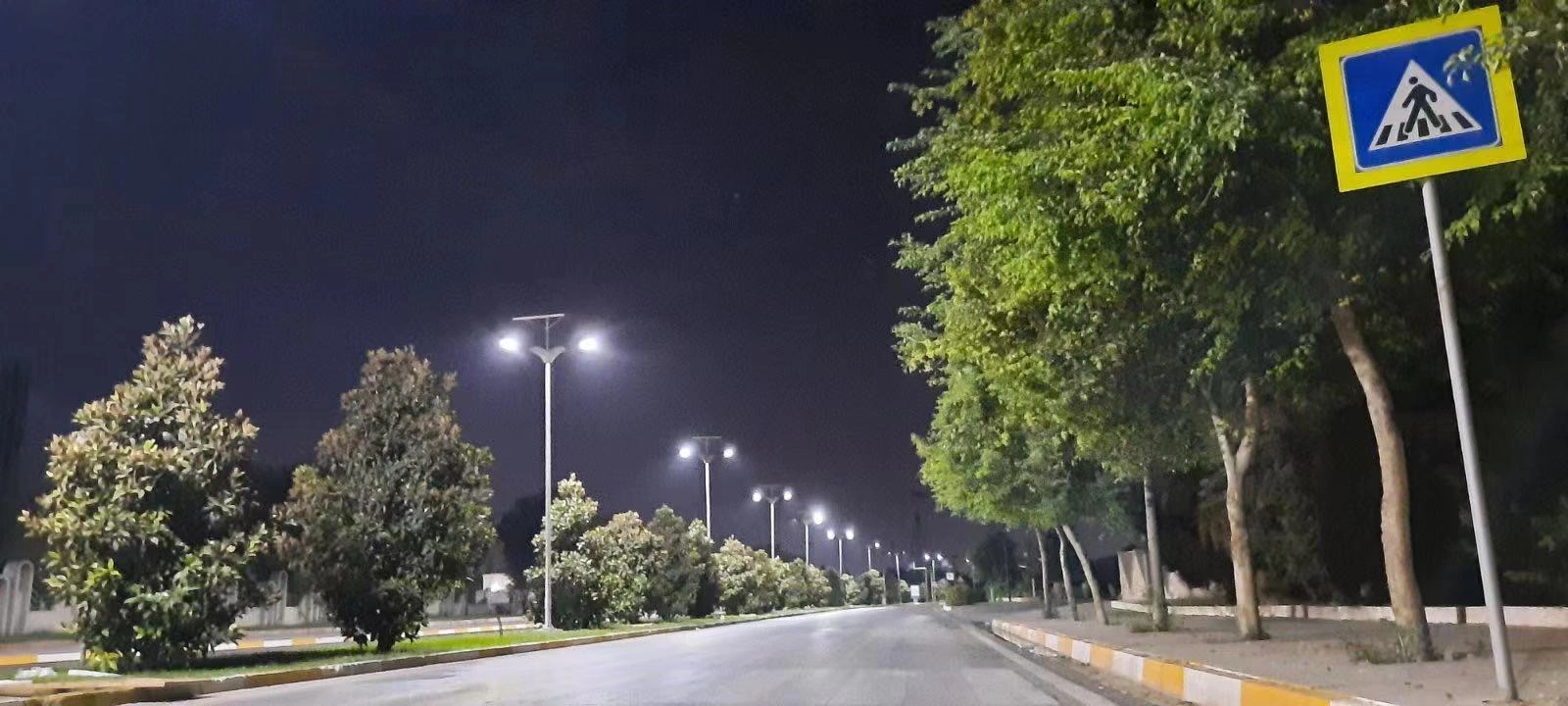

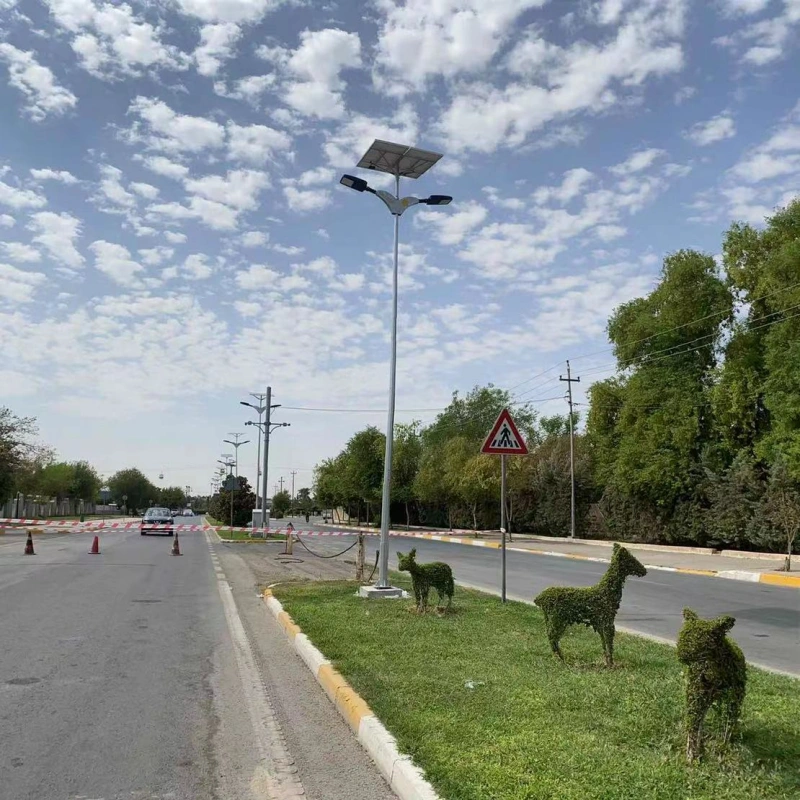

All in Two Solar Street Light 30W-120W 12.8V-25.6V , Mainly lighting in urban street ,road ,Plaza,Piazza ,Square,parking lot,etc.

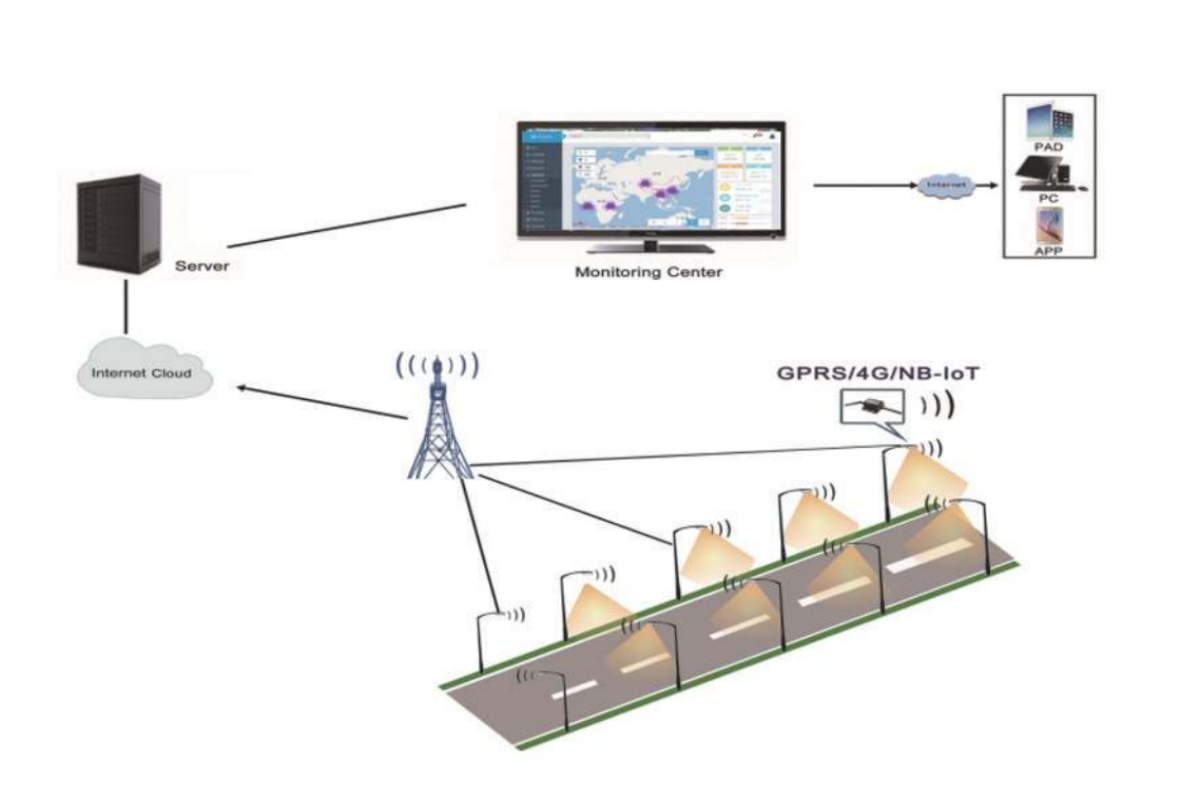

Support Control system （Optional）:Zigbee WIFI control 4G/5G or 220V hybrid version;
All in Two Solar street light 30W-60W specification:
|
Picture |
 |
|
|
| Model | U30W | U50W |
T6 |
|
LED power |
30W ±5% | 50W±5% | 60W±5% |
| Mono Solar Panel | 70W 18v | 100W 18v |
120W 36V |
|
LifePO4 battery |
12.8V 307WH 24Ah | 12.8V 460WH 36Ah | 12.8V 538WH 42AH |
| Battery lifetime |
>2000 cycles |
||
|
Fixture color |
Grey/customized | ||
| Lamp size mm | 568x250x92 | 568x250x92 |
678x278x93 |
|
LED source |
72pcs smd3030 | 90pcs smd3030 | 64pcs smd5050 |
| Fixture material |
Alu die casting |
||
|
Luminous flux |
>4,800lm | >6,800lm | >8,800lm |
| Beam angle |
145*75° |
||
|
Lighting program |
6Hour 100% Power+6H 50% Power,Backup 3-5 rainy days | ||
| Charge controller |
MPPT 99% |
||
|
Remote control |
2.4G or PC/iPad/Mobile Phone (Optional) | ||
| Working Temp |
-20℃~75℃ |
||
|
IP Rate |
IP65 | ||
| Top Arm diameter |
60-75mm |
||
|
Pole height |
5m | 6m | 6-8m |
| Net weight | 8.2Kg | 9.8Kg |
12.7Kg |
|
Warranty |
5years |
||
All in Two Solar street light 80W-120W specification:
|
Picture |
|
|
|
| Model | T8 | T10 |
T12 |
|
LED power |
80W±5% | 100W±5% | 120W±5% |
| Mono Solar Panel | 150W 36V | 200W 36V |
260W 36V |
|
LifePO4 battery |
12.8V 768WH 60AH | 25.6V 921WH36AH | 25.6V 1075WH 42AH |
| Battery lifetime |
>2000 cycles |
||
|
Fixture color |
Grey/customized | ||
| Lamp size mm | 678x278x93 | 800x310x116 |
800x310x116 |
|
LED source |
64pcs smd5050 | ||
| Fixture material |
Alu die casting |
||
|
Luminous flux |
>12,800lm | >14,800lm | >16,800lm |
| Beam angle |
145*75° |
||
|
Lighting program |
6Hour 100% Power+6H 50% Power,Backup 3-5 rainy days | ||
| Charge controller |
MPPT 99% |
||
|
Remote control |
2.4G or PC/iPad/Mobile Phone (Optional) | ||
| Working Temp |
-20℃~75℃ |
||
|
IP Rate |
IP65 | ||
| Top Arm diameter |
60-75mm |
||
|
Pole height |
7-10m | 8-10m | 10-12m |
| Net weight | 14.8Kg | 17.3Kg |
19.5Kg |
|
Warranty |
5years |
||

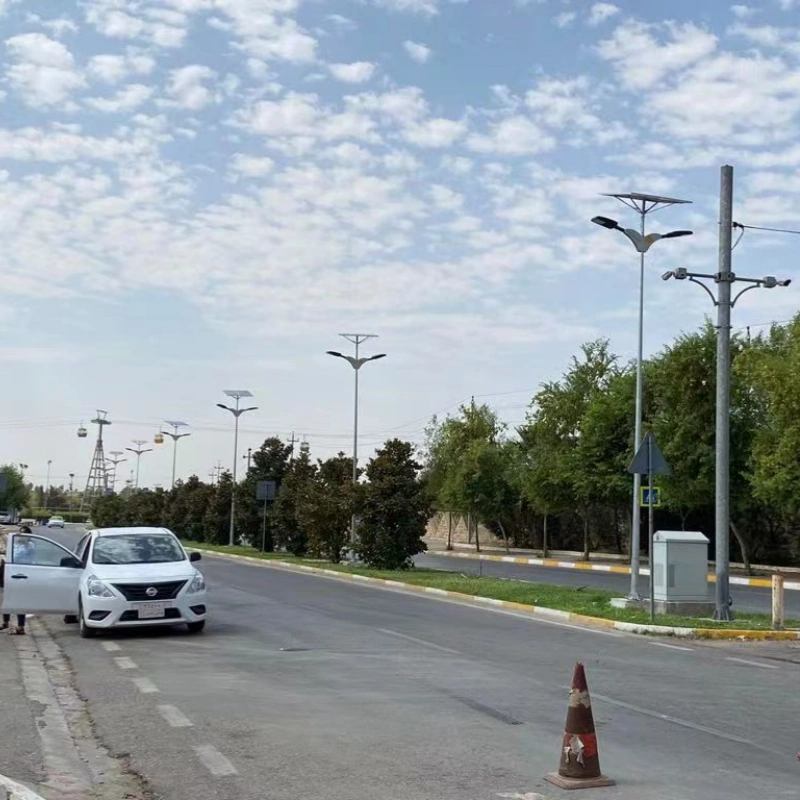

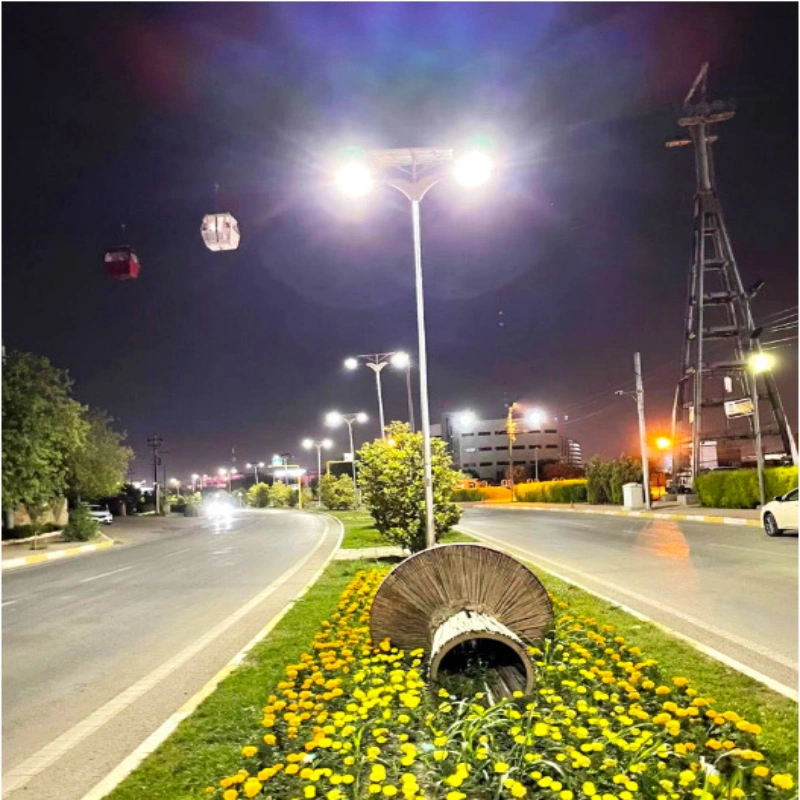

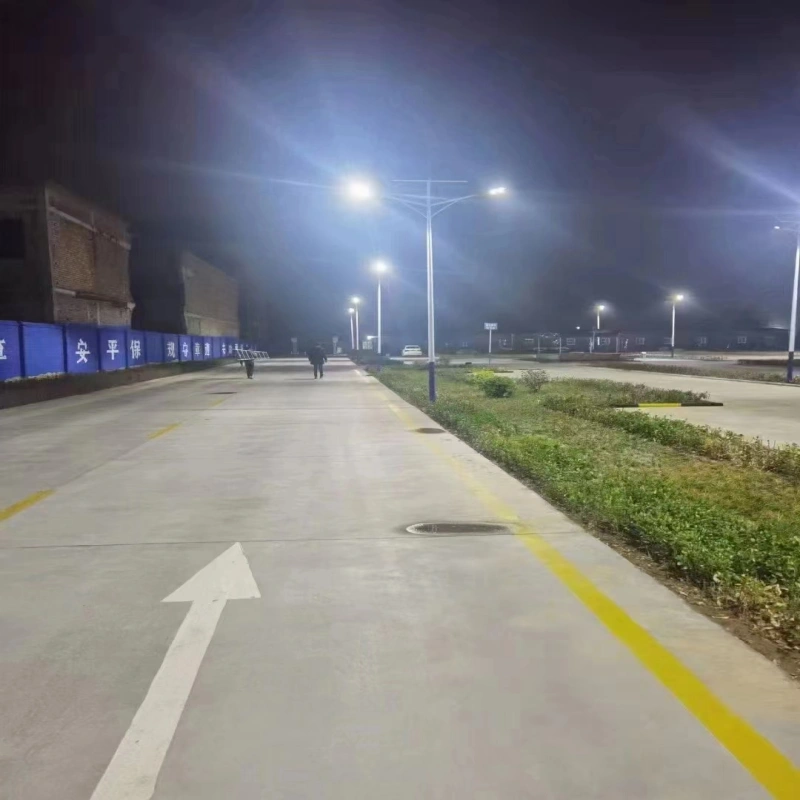

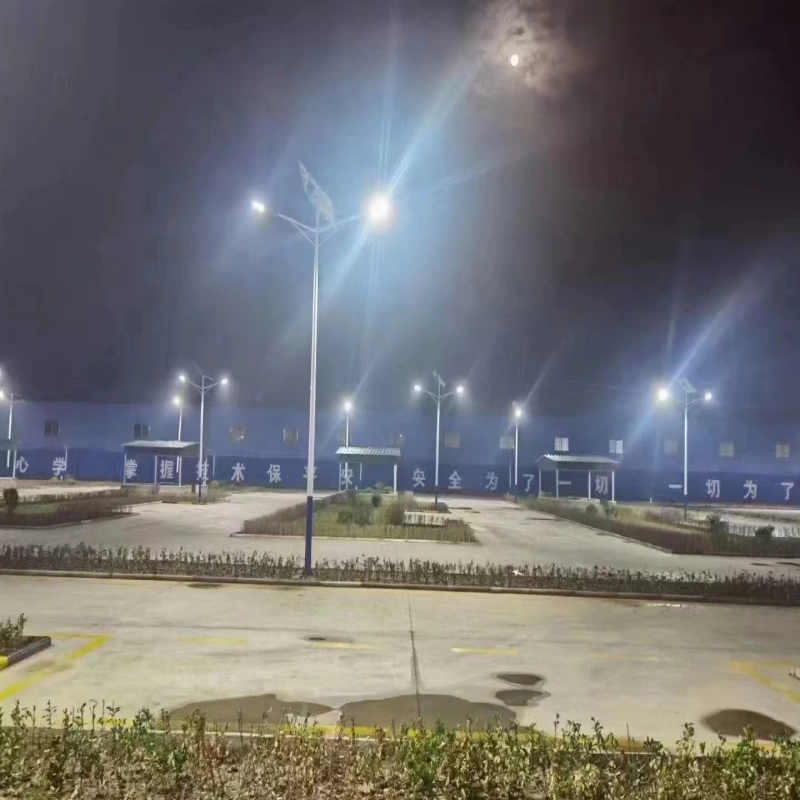

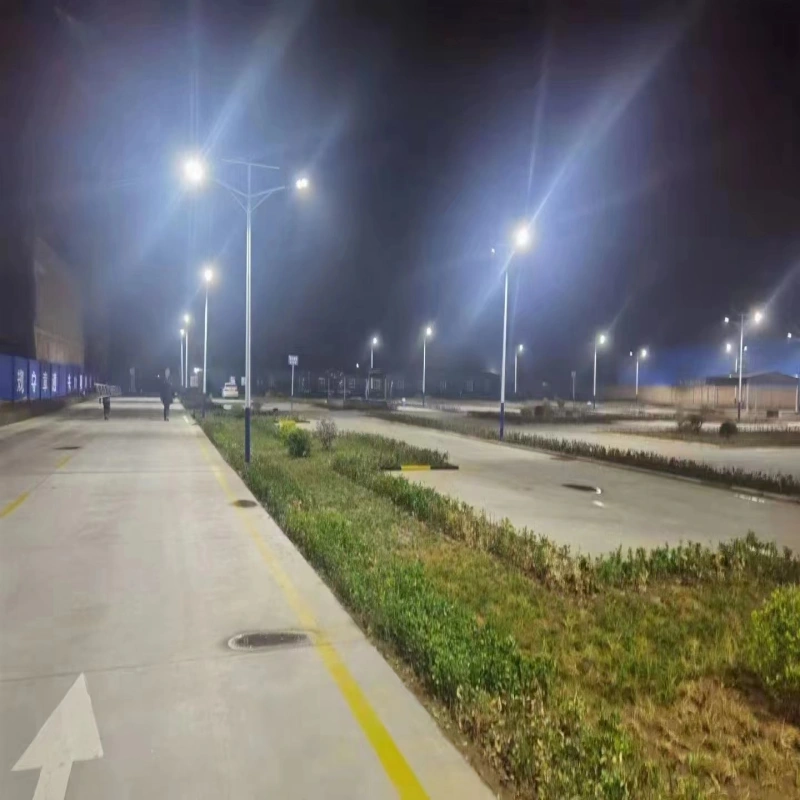

30W and 80W Double Arm Solution：
| Picture | ||
| Model | 30Watts*2 Dual Heads |
80Watts*2 Dual Heads |
| LED power | 30 Watts X 2 | 80Wattsx2 |
| Regular Solar Panel | 200W | 400W |
| LifePO4 battery | 12.8V 307WH X2 |
12.8V 768WH X 2 |
| Battery lifetime | >2000 cycles | |
| Fixture color |
Grey/customized |
|
| Lamp size mm | 568x250x92x2 | 678x278x93x2 |
| LED source | 144pcs smd3030 |
128pcs smd5050 |
| Fixture material | Alu die casting | |
| Luminous flux | >4,800lm X 2 |
>12,800lm X 2 |
| Beam angle | 145*75° | |
| Lighting program | 6Hour 100% Power+6H 50% Power,Backup 3-5 rainy days (Optional) | |
| Charge controller |
MPPT |
|
| Remote control | 2.4G or PC /iPad/Mobile Phone (Optional) | |
| Working Temp |
-20℃~75℃ |
|
| IP Rate | Ip65 | |
| Top Arm diameter |
60-75mm |
|
| Pole height | 7m Pole 1.2-2m arm | 12m pole,1.2-2m arm |
| LED Head Net weight | 17kg |
30kg |
| Warranty |
5years |
|
