Utility Solar street Light 20W-80W

Utility Solar street Light 20W-80W
Outdoor Solar Street Light High Quality Waterproof Ip65
All In Two Solar Led Street Lights 20W-80W
Solar Power Street Light
LifePO4 battery 12.8V 20AH-50AH
Solar Panel18V 40W-150W (high efficiency mono)
Solar charging time:5-6 hours by bright sunlight
Lighting time:12hours/day(6H100%+6H 50%),backup 3-5 days
Material:High class aluminium alloy
Application:Courtyard/Garden/Park/Street/Roadway/pathway/Parking Lot/Privateroad/Sidewalk/Publicsquare/plaza/Campus/Airfield/Farm &Ranch/Perimeter Security/ Wildlife area/Remote Area/Military Base
Solar Battery: carton and pallet packing;
Controller: carton packing;
Pole and Brackets: bubble wrap
apply to die-casting aluminium outdoor led solar power street light price

Utility Solar street Light 20W-80W,all in two solar street light,all in one solar street light,solar street light ,solar power street light,solar PV street light Key Advantages:
ESmart solar controller built-in, power brightness and lightingtime are adjustable via remote controllerMICROWAVE SENSOR (Optional )
More area can be covered than PIR sensor, longer distance and
wider sensitive angle, more stable than PIR.
Solar panel separated from light, Ensuring enough power
can be generated even in bad wintertime with weak sunshine.
Never worry about black-out.
MC4 male & female plugs directly to 18V solar panel. quick and
easy for connection. 2.5mm² power cord for less voltage drop.

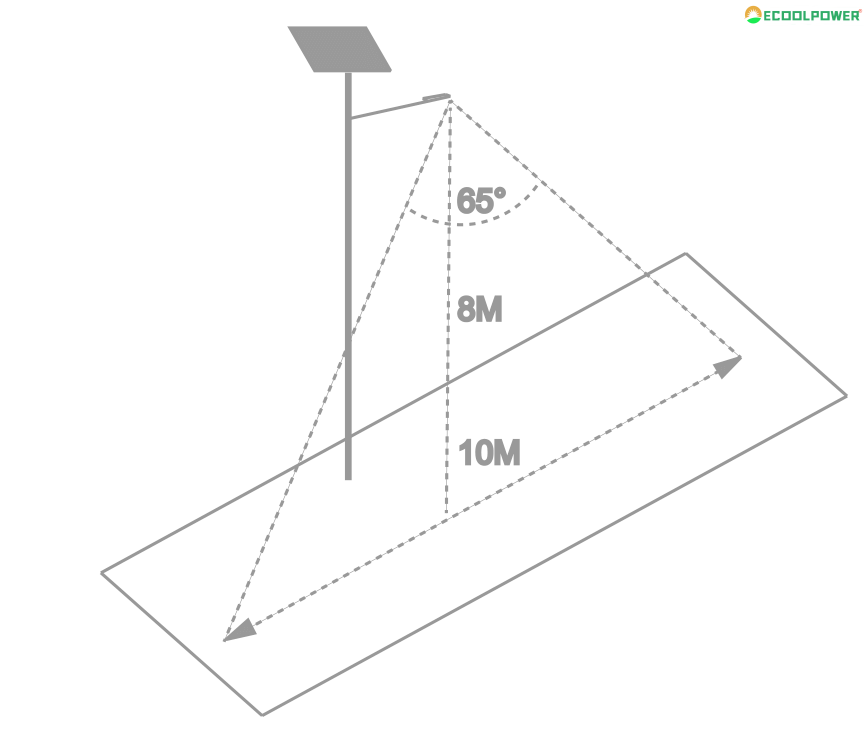

Induction Sensor



Microwave (Radar) sensor is adopted in this light in order
to save more energy. Energy saving mode is adjustable by
the remote control easily. Radar sensor is more sensitive
than PIR sensor in much wider angle and longer distance ,
And it can be trigered easily with slight movements. The
best sensitive distance from people / object to light sensor
should be within 12 meters.
PIR sensor is optional

Charge Controller

Main Feature:
Programmable by remote control, easy to modify the lighting power and lighting time as any requests, One remote control can be used for 500 pcs of 60W solar light head.
• Boasts a load triple-stage brightness adjustment and morning on design, with an operating duration adjustable from 0 to 15 hours and power settable from 0 to 100%.
• Features a system status log function, able to record a maximum of 7 days of system status, comprehensively and effectively monitoring the system’s conditions.
• Features an intelligent power mode which can extend the battery life to its top limit by adjusting the load power automatically according to the remaining battery capacity.
• True constant current rather than current-limiting control ensures smooth and stable output current, effectively reducing LED light attenuation and extending LED service life.
• With an infrared remote control function, operations including setting parameters, reading status and viewing historical data can be conducted.
• An overheat protection function enables the device to scale down the load or shut off the load completely when its temperature exceeds a certain point.
• A range of protection measures such as battery reverse-connection protection, LED short-circuit and open-circuit protection, etc., put the system under comprehensive and constant guard.harging current and voltage, load operating status, controller operating status and other data, and automatically triggers alarms when failures are detected.

Lithium Battery Pack:

Lithium Iron Phosphate (LiFePO4) Battery
• Safest lithium chemistry with high energy density
• Built-in automatic protection for over-charge,
over djixharge, over current and over temperature
• Efficient & long-lasting up to 4000+ cycles DOD 50%
• >2000 cycles @0.2C, Charge/Discharge at 100% DOD,
• Internal cell balancing
• Wide temperature range: -20℃ ~ 70℃
• Maintenance free after installation
• Cost effective

Test Performance of LifePO4 Battery

Pole Dimension

Project Show:

1.Q:How to use our lights?
A:The light battery is on sleep before delivery in order to avoid discharging during transportation. You need activate
accordingto the installation manual.
2. Q:How to install our lights?
A:Fix the product with a right angle and make sure no shelter on the surface of solar panel.
3. Q:How long is the all in one solar street light charge time?
A:All of our solar LED light charging time is 8 hours in strong sunlight.
4. Q:What to do with the rainy day or Cloudy day?
A:The outdoor solar light is waterproof. You don’t need to worry about it. After fully charged, the capacity of battery can keep the LED working in several rainy/ cloudy days.
5. Q:If you found the light brightness is down or total off, how to handle?
A:It proves the power of solar light battery is not enough to support normal lighting, so you need have 2-3 goods sunlight
charging, especially in Winter season, the sunlight intensity is much below the standard sunlight (1000kw/m2), it may need more longer time for charging.
6. Q:What is the warranty for our light?
A:For all of our lights, we provide 3 years warranty for whole set as we used the best quality LiFePO4 lithium battery, which
is also used in electric bus, lifespan is 8-10 years.
7.Q:What is the terms of payment?
A:T/T, L/C, trade assurance or cash; 30% for deposit, the balance 70% before shipment for bulk order.
