RGB ,Bluetooth APP remote control Solar garden lamp
RGB solar garden lamp with remote control and bluetooth music 800W 1200W
1.Product Overview：
This is our patent product, aimed to provide high quality solar garden light for our customers, approved CE, RoHS, FCC,and other intemational certification.”Special RGB musical rhythm”, “high charging efficiency”” strong endurance” and “outstanding light efficiency’ is our main advantage. Luminaire equipped with large capacitylithium battery, which can absorb solar energy and convert it into electric energy by solar panel. Energy stored in thebattery and then supplied to the solar lamp. Can be widely used in the yard, community, plaza, garden, park, road andother areas.
2.Product Design：
Product design concept keeps with the classic design element of garden lights, mixed with “UFO” magic design style,coming out with a unique industrial design in the market. While solving the lighting, also bring a brand-new product visualimpact to users and add a unique decoration to users!
3.Specification:
| Model | 800W | 1200W |
| Material | Die-casting Aluminium+PC(Anti-UV material) | Die-casting Aluminium+PC(Anti-UV material) |
| Lamp Size | 580x H248mm | 580 x H248mm |
| LED QTY(PCs) | 186pcs SMD5730(white),186 pcs SMD5730 (warm white),36 pcs SMD5054(RGB) | 186pcs SMD5730(white),186 pcs SMD5730 (warm white),36pcs SMD5054(RGB) |
| Battery Capacity(Ah) | 32AH | 48AH |
| Solar Panel | 4V/30W(Polycrystalline) | 4V/40W(Monocrystalline) |
| CCT | 3500-4000K &6500-700oKRGB 16million colors selectable | |
| charging Time | Effective sunshine 4-6 hours | Effective sunshine 4-6 hours |
| Discharge Time | 2-3 rainy days | 2-3 rainy days |
| Discharge Current | 4.5A | 6A |

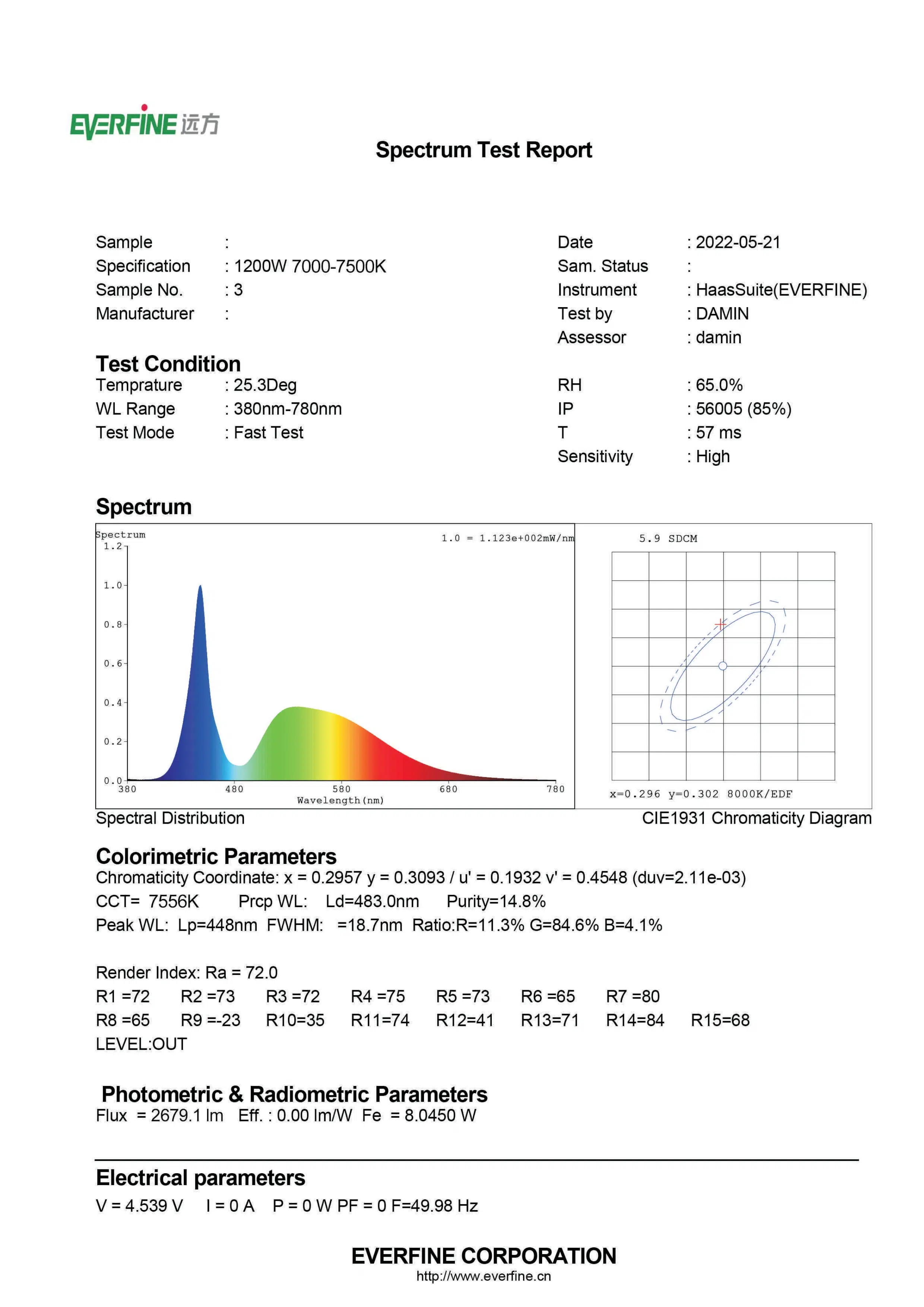

| Luminous Flux | 2029LM | 2679LM |
| Lighting Mode | White &Warm white switchRGB 16million colors selectable | |
| Product Features | Intelligent light control+ Remote control +APP Bluetooth Music Rhythm | |
| Recommendedlnstallation Height | 3-5 meters | 4-6 meters |
4.Product Advantages
1) Slope design, not easy to accumulate dust, ensure charging efficiency
It adopts an 8-degree slope design, which not only makes the appearance beautiful and unique,but also can achieve a higher charging efficiency with theinclined surface, improved at least15% than the horizontal surface;at the same time, the slope design of the solar panel is noteasy toaccumulate dust, thus the rainwater can be washed away, notonly with higher power generationbutalso easier to maintain.
2)Easy installation, moveable casing tube reduces transportation cost
It has an integrated design oflight source and solar panel, which can be directly installed intothe pole, eliminating the need for complicated installation oflamp arms and other installations,and the installation efficiency of this productis several times higher than that of traditional splitsolarlamps. The casing tube adopts a detachable “moveable” design, which saves the productpackaging volume by 40% and greatly reduces transportation cost.
3)APPintelligent control, RGB music rhythm function, wide application scenarios
Comes with Bluetooth function, users can realize intelligent control of LED through mobile APP.The SMD5054 RGB light source matched with the product can move intelligently with the musicof the mobile phone APP to enhance the lighting atmosphere. The products are widely used incourtyards, parks, squares and other scenes.While solving the lighting problem, they bringdifferent lighting color experiences to users.
4)Intelligentextended function, compatible with other Bluetooth devices
This product can be connected to other Bluetooth devices to achieve multiple interconnections,such as connecting to Bluetoothspeakers. Luminaire changes color and modeintelligentlyaccording to the musical rhythm, which can be widely used for Christmas and other holidaydecorations.
5)Three colors of light switch at will, 360″luminous angle
This product can be switched between whitelight, warm light, and RGB according to customer’spreferences. Meanwhile to meetthe user’s 360’lighting needs, the productadopts a 360°opticaldesign. The lighting is uniform and soft, which meets lighting requirements of courtyards, parks,squares,etc.

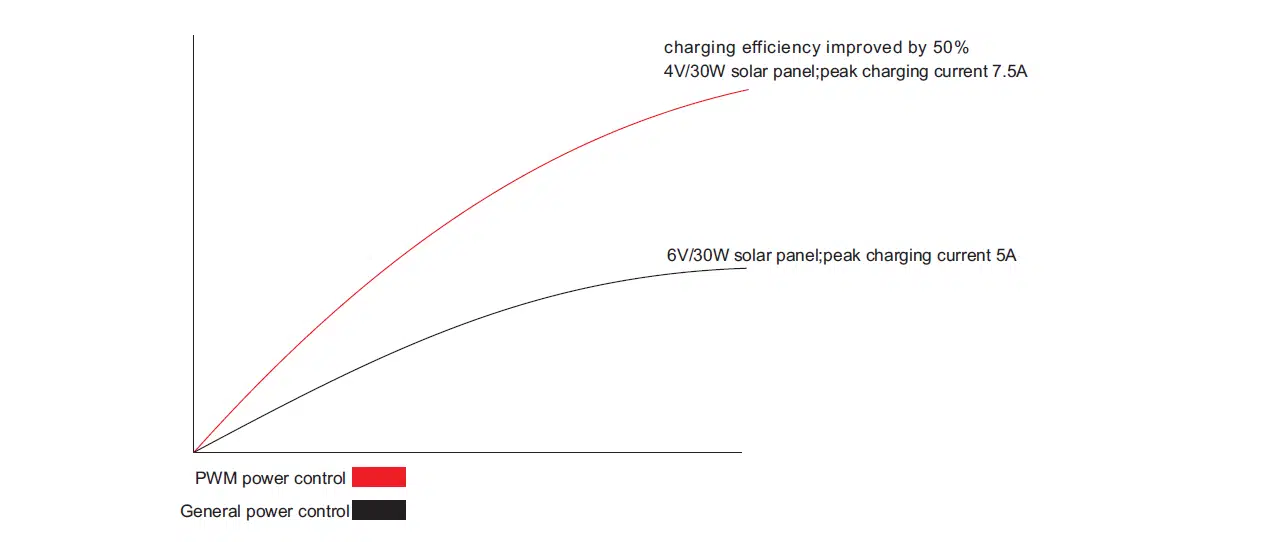

6)High-efficiency fast charging solution, charging efficiency improved by 50%
The solar controller simulates the MPPT charging scheme, a unique charging and dischargingmanagement system with more efficient charging and discharging efficiency. Forexample, themarket routinely uses 6V/30W photovoltaic panels with a peak charging current of 5A; but ourproduct uses 4V/30Wphotovoltaic panels with a peak charging current of7.5A.The chargingefficiency is improved by 50%.
7)Intelligent power management system, superlong discharge time
Committed to meet the needs of customers “lighting everyday in 365 days”, our company hasdeveloped an intelligent power management systemin cooperation with the University of ElectronicScience and technology. It not only has higher charging efficiency, butalso can actively identifythe charging amount during daytime, so as to adjustpowerindependently to achieve a betterlighting effect during cloudy & rainy days.
5.Lighting Model
Power reduction indifferent mode | Start-up time | |||||
1H | 2H | 1H | 1H | 7H | 0.5H | |
Always on mode | 100-80% | 80-60% | 60-50% | 50-40% | 20% | 40% |

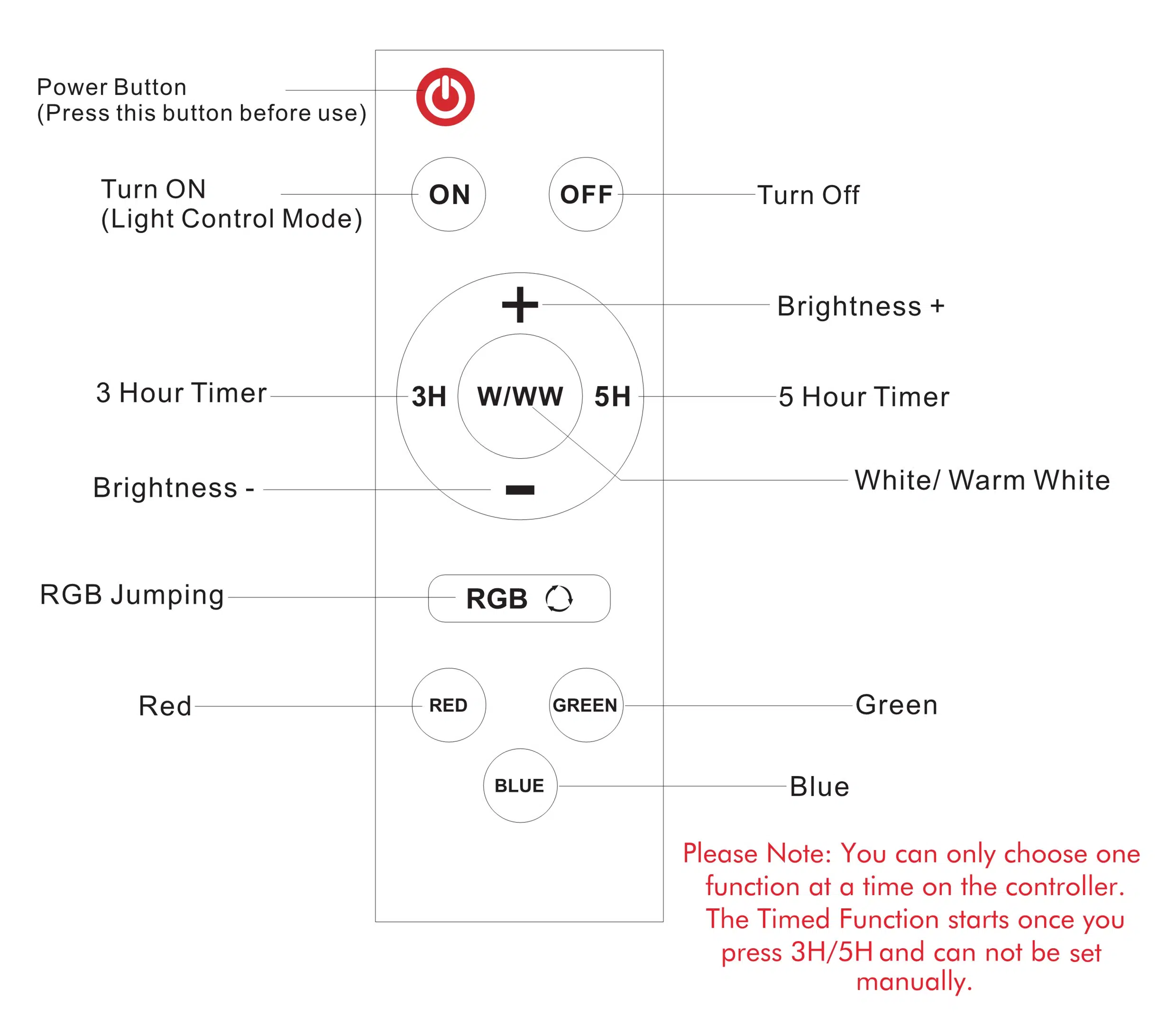

6.Instructions of Remote Controller
The specific functions are shown in the following picture.
(The remote control has memory function, only need to set once.)
Packing size:
Model | Color Box size cm | Carton Size cm | PCS/CTN | N.WKG | G.W KG |
800 | 60*15.5*59.5CM | 61*33*61CM | 2 | 11.7 | 14.3 |
1200 | 60*15.5*59.5CM | 61*33*61CM | 2 | 11.7 | 14.3 |
